Dirt King

Long Travel Fox Spec Coilovers

Sale
Regular price $2,449.00

Shipping calculated at checkout.

Description

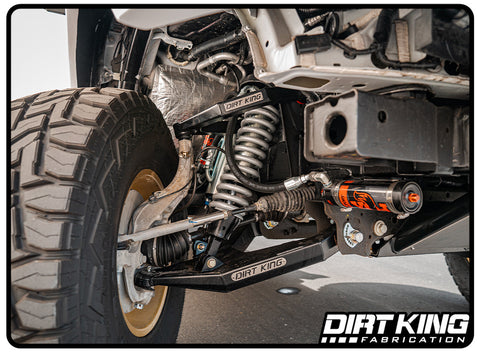

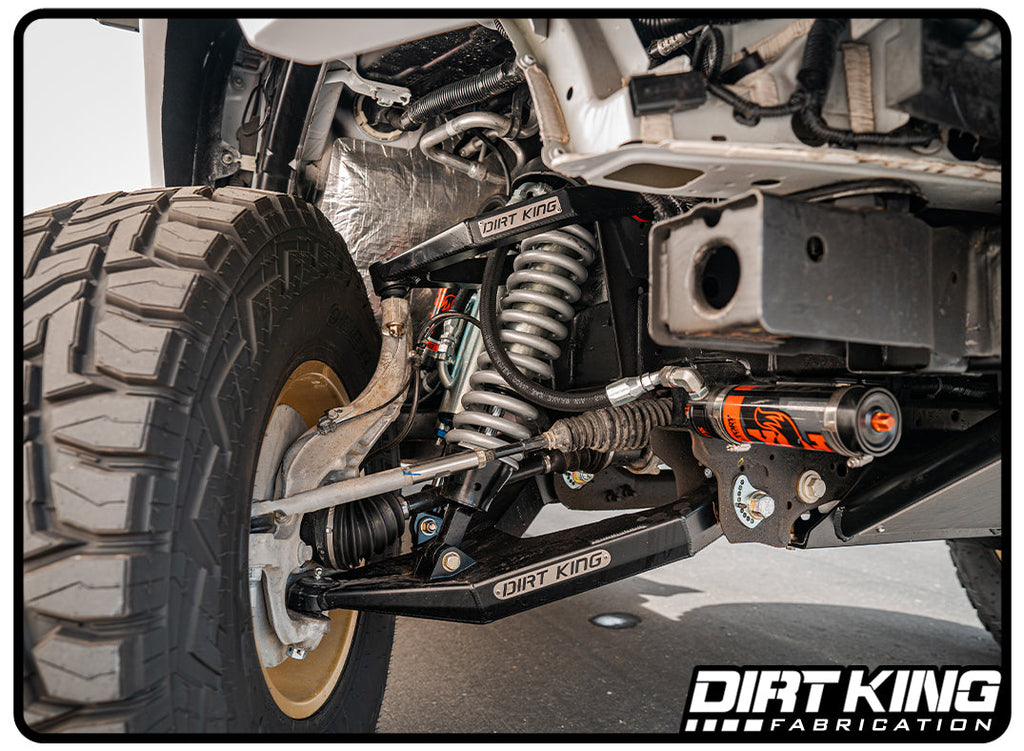

The Dirt King spec coilover shocks were developed specifically for our GM 1500 front long travel suspension system. They are thoroughly tested and tuned for optimum off-road performance and on road drivability. For best handling we recommend upgrading to compression adjusters and internal bypasses. These options will allow you to fine tune your ride quality and provide additional dampening on harsh impacts.

Specifications

Shock Manufacture: Fox
Spring Manufacture: Eibach
Amount of Lift: Adjustable from 0-3" of lift
DSC Adjusters

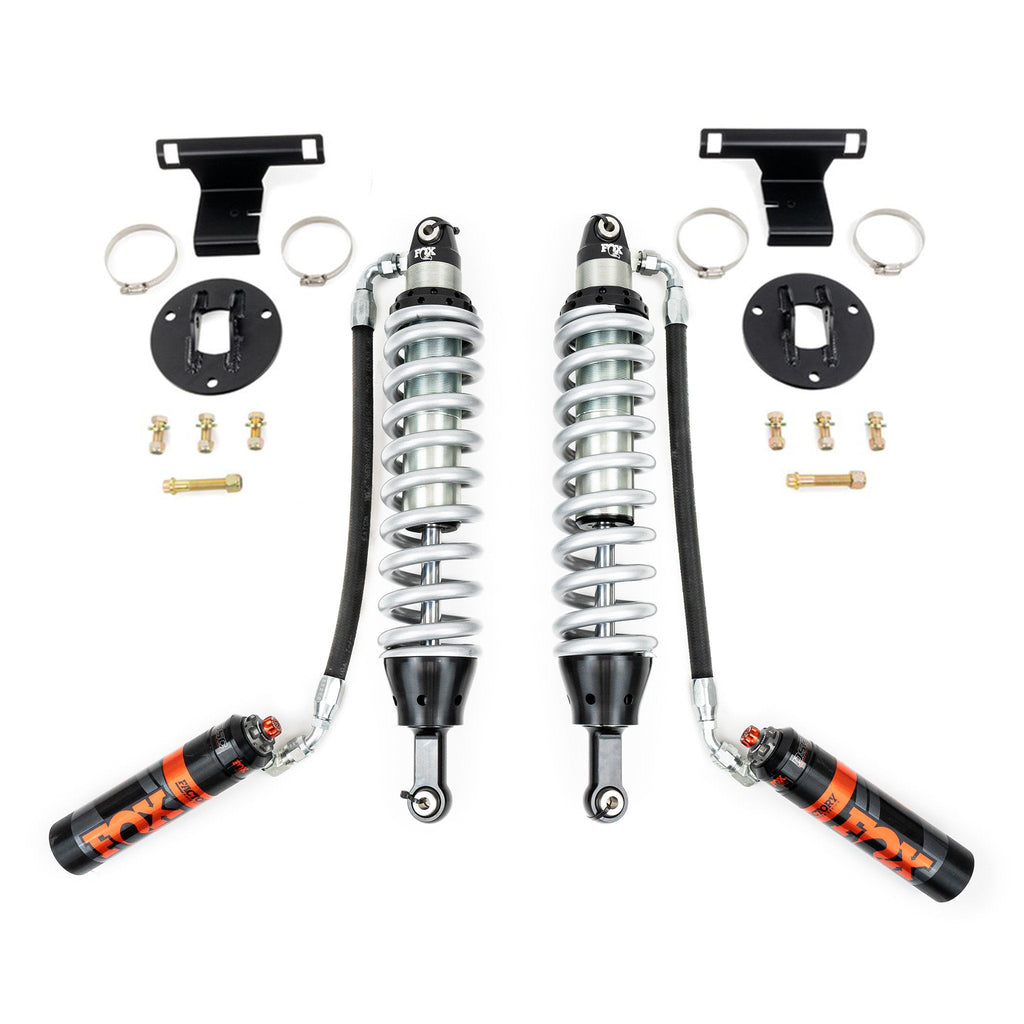

What's Included

Fox spec built shocks
Coil bucket shock mounts
Bolt on reservoir mounts
All necessary mounting hardware

Features

Body	2.5" Smooth bore and honed seamless alloy body
Body Plating	Zinc-plated and double-clear coated for long lasting finish
External Reservoir	2.5" Smooth bore and honed seamless alloy reservoir
Components	Black-anodized, CNC-machined 6061-T6 billet aluminum
Spring	Application specific, adjustable 3.0 Eibach® racing springs
Shaft	7/8" hard chrome plated steel shafts
Piston	6061-T6 hard-anodized, high flow aluminum piston
Valving	Application specific valving to maximize performance
Seals	Redundant sealing pack system main seal, wiper seal, scraper seal
Oil	JM92 Advanced Suspension Fluid for improved performance at variable temperatures
Bearing	PTFE-lined, heat-treated, alloy steel spherical
Mounting	For Dirt King long travel kits only
Adjustments	Ride height preload ring

Compatibility

Works with the Following Suspension Systems: DK-636908-B
