Description

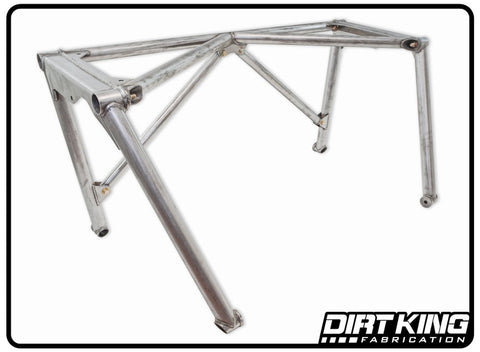

The Dirt King Prefab Bed Cage was developed after building numerous custom bed cages. With that experience we've perfected the design for maximum travel and easy installation. The bed cage takes up minimal bed space while not compromising strength. Accessory mounting holes are incorporated into the center section of the cage to mount dust lights and flag whips. The entire kit bolts together and mounts to the frame after four brackets are welded on. It can be installed with leaf over or leaf under spring packs. This suspension system is superior to a cantilever suspension system for two major reasons. The first reason is the shock mounts on the bed cage are outside the frame rails vs inside the frame rails for increased stability. The second reason is the shocks are mounted vertically with a motion ratio close to 1:1 allowing for proper dampening through the suspension travel. The cantilever suspension has a higher motion ratio resulting in smaller shocks, difficult to valve shocks properly, and heating up the shocks faster since they have less fluid. The Dirt King Prefab Bed Cage is your best choice to increase rear suspension performance while not breaking the bank.
Specifications
Recommend Leaf Pack: Deaver R81
Recommend Shocks: Fox or King (works with all shock manufactures)
Recommend Shock Length: 16" (26" collapsed, 42" extended)
- Works with 14" shocks with extended rod ends but will limit travel.
Recommended Shock Diameter: 3.0" (works with 2.5"-3.5" shocks)
Bypass Tube Layout: Bypass tubes on front and back of shocks
Bed cage Shock Mounting Width: 1.5"
Axle Width: Requires 1.5"-2" wheel spacers or 1.5"-2" wider per side axle
Accessory Mounting Hole Size: 1/2"
What's Included
Prefabbed bed cage structure
Grade 8 mounting hardware
Installation instructions
Features
CAD designed
Boxed plate and tube construction
2"x.120" tubing
1/4", 3/16", and 1/8" plate
Professionally MIG welded
Proudly made in the USA
